Electronic Components – What Are the Common Problems in Electronic Circuits?
Electronic circuits may experience various faults that affect their performance or prevent them from operating correctly. Understanding these common problems helps technicians troubleshoot circuits more efficiently.
1. What is an open circuit, and how does it affect circuit operation?
An open circuit occurs when there is a break in the electrical path, preventing current from flowing. This problem is commonly caused by a broken wire, loose connection, damaged PCB trace, or faulty switch.
2. What is a short circuit, and why is it dangerous?
A short circuit occurs when an unintended low-resistance path allows excessive current to flow between two points in a circuit. This condition may result from solder bridges, damaged insulation, or defective components, potentially causing blown fuses, overheating, or permanent circuit damage.
3. How do incorrect component values affect a circuit?
Electronic circuits are designed using components with specific values. If an incorrect resistor, capacitor, or other component is installed, the circuit may not operate as intended. For example, using a resistor with a higher resistance than specified may reduce current flow and prevent the circuit from functioning properly.
4. Why is correct component polarity important?
Some electronic components, such as electrolytic capacitors, diodes, LEDs, and transistors, must be connected with the correct polarity. Installing these components incorrectly can prevent the circuit from working and may permanently damage the component.
5. How do noise and electromagnetic interference affect electronic circuits?
Electronic circuits can be affected by electrical noise or electromagnetic interference (EMI) from nearby equipment, power lines, or wireless devices. This interference may cause unstable operation, incorrect signal readings, or unexpected circuit behaviour.
6. Why does overheating cause circuit failure?
Power devices such as voltage regulators, transistors, and integrated circuits generate heat during operation. Insufficient cooling, excessive current, or poor ventilation can cause these components to overheat, leading to reduced performance, component failure, or damage to nearby parts.
Case Example
A technician is repairing a DC motor controller that does not start when powered on. The technician first performs a visual inspection and discovers a loose wire connection, creating an open circuit. After reconnecting the wire, the motor still fails to operate. Using a multimeter, the technician measures the resistance of a resistor and finds that an incorrect resistor value had been installed during a previous repair. The resistor is replaced with the correct value, and the motor controller operates normally. This example demonstrates that multiple faults may exist in a circuit and that systematic troubleshooting is essential for identifying the root cause.
Conclusion
Electronic circuits can experience several common faults, including open circuits, short circuits, incorrect component values, incorrect polarity, electrical noise, and overheating. Understanding these problems and applying systematic troubleshooting techniques with appropriate test instruments, such as multimeters and oscilloscopes, enables technicians to diagnose faults accurately, improve repair efficiency, and ensure the safe and reliable operation of electronic systems.
Electronic circuits may experience various faults that affect their performance or prevent them from operating correctly. Understanding these common problems helps technicians troubleshoot circuits more efficiently.
1. What is an open circuit, and how does it affect circuit operation?
An open circuit occurs when there is a break in the electrical path, preventing current from flowing. This problem is commonly caused by a broken wire, loose connection, damaged PCB trace, or faulty switch.
2. What is a short circuit, and why is it dangerous?
A short circuit occurs when an unintended low-resistance path allows excessive current to flow between two points in a circuit. This condition may result from solder bridges, damaged insulation, or defective components, potentially causing blown fuses, overheating, or permanent circuit damage.
3. How do incorrect component values affect a circuit?
Electronic circuits are designed using components with specific values. If an incorrect resistor, capacitor, or other component is installed, the circuit may not operate as intended. For example, using a resistor with a higher resistance than specified may reduce current flow and prevent the circuit from functioning properly.
4. Why is correct component polarity important?
Some electronic components, such as electrolytic capacitors, diodes, LEDs, and transistors, must be connected with the correct polarity. Installing these components incorrectly can prevent the circuit from working and may permanently damage the component.
5. How do noise and electromagnetic interference affect electronic circuits?
Electronic circuits can be affected by electrical noise or electromagnetic interference (EMI) from nearby equipment, power lines, or wireless devices. This interference may cause unstable operation, incorrect signal readings, or unexpected circuit behaviour.
6. Why does overheating cause circuit failure?
Power devices such as voltage regulators, transistors, and integrated circuits generate heat during operation. Insufficient cooling, excessive current, or poor ventilation can cause these components to overheat, leading to reduced performance, component failure, or damage to nearby parts.
Case Example
A technician is repairing a DC motor controller that does not start when powered on. The technician first performs a visual inspection and discovers a loose wire connection, creating an open circuit. After reconnecting the wire, the motor still fails to operate. Using a multimeter, the technician measures the resistance of a resistor and finds that an incorrect resistor value had been installed during a previous repair. The resistor is replaced with the correct value, and the motor controller operates normally. This example demonstrates that multiple faults may exist in a circuit and that systematic troubleshooting is essential for identifying the root cause.
Conclusion
Electronic circuits can experience several common faults, including open circuits, short circuits, incorrect component values, incorrect polarity, electrical noise, and overheating. Understanding these problems and applying systematic troubleshooting techniques with appropriate test instruments, such as multimeters and oscilloscopes, enables technicians to diagnose faults accurately, improve repair efficiency, and ensure the safe and reliable operation of electronic systems.
- Published on

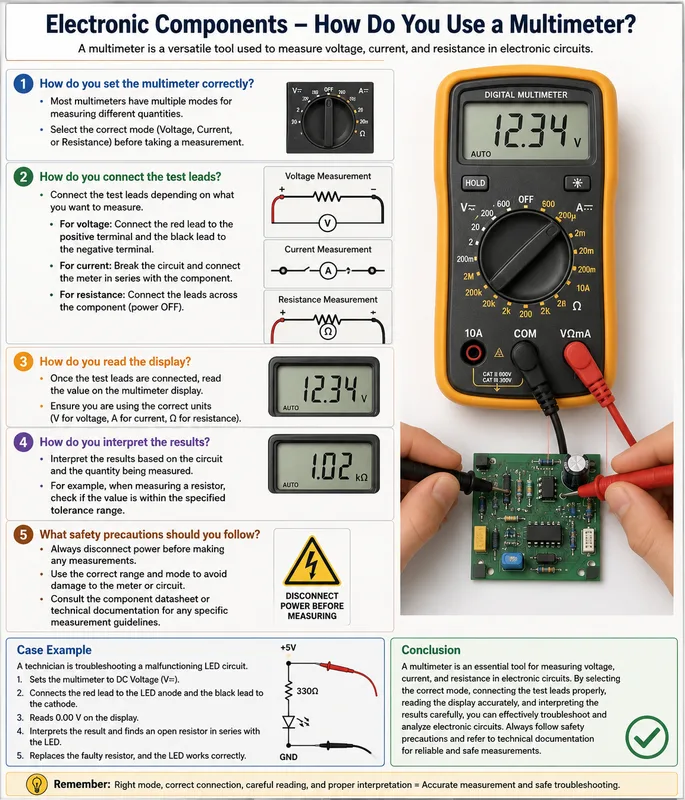

Electronic Components – How Do You Use a Multimeter?
A multimeter is a versatile instrument used to measure important electrical quantities such as voltage, current, and resistance. The following questions explain the correct procedures for using a multimeter safely and accurately.
1. How do you set a multimeter to the correct measurement mode?
Before taking any measurement, select the appropriate function on the multimeter. Choose the correct mode depending on whether you are measuring voltage (V), current (A), or resistance (Ω). Selecting the correct range ensures accurate readings and protects the meter from damage.
2. How should the test leads be connected?
The connection of the test leads depends on the type of measurement being performed.
- For voltage measurement: Connect the red lead to the positive terminal and the black lead to the negative terminal.
- For current measurement: Disconnect the circuit and connect the multimeter in series with the component so that current flows through the meter.
- For resistance measurement: Ensure the circuit is powered OFF, then connect the test leads across the component being tested.
Once the test leads are properly connected, observe the value displayed on the multimeter screen. Always confirm that the displayed unit matches the selected measurement mode, such as volts (V), amperes (A), or ohms (Ω).
4. How should the measurement results be interpreted?
Compare the measured value with the expected value or the component’s specifications. For example, when testing a resistor, verify that the measured resistance falls within its stated tolerance. Readings that differ significantly may indicate a faulty component.
5. What safety precautions should be followed when using a multimeter?
Always switch off and disconnect the power supply before measuring resistance or making changes to the circuit. Use the correct measurement range and avoid touching exposed conductors while taking measurements. It is also advisable to refer to the manufacturer’s datasheet or technical documentation for recommended testing procedures.
Case Example
A technician is troubleshooting an LED lighting circuit that is not functioning properly. The technician first sets the multimeter to the DC voltage mode and measures the supply voltage, confirming that the power source is operating correctly. Next, the technician switches the multimeter to resistance mode after disconnecting the power and tests the series resistor. The resistance reading is much higher than the specified value, indicating that the resistor is faulty. After replacing the resistor, the LED lights up normally, confirming that the fault has been successfully repaired.
Conclusion
A multimeter is one of the most essential instruments for testing electronic components and circuits. By selecting the correct measurement mode, connecting the test leads properly, accurately reading the display, and interpreting the results correctly, technicians can diagnose electrical faults efficiently. Following proper safety procedures and manufacturer guidelines helps ensure accurate measurements, protects the equipment, and promotes safe working practices.
- Published on
Electronic Components – What Are the Common Circuit Testing Techniques?
Testing electronic circuits is an essential step in identifying faults and ensuring that electronic systems function correctly. The following questions introduce common circuit testing techniques.
1. How can visual inspection help identify circuit problems?
Visual inspection is the first step in troubleshooting. It involves checking the circuit for visible signs of damage, such as loose connections, burnt components, cracked solder joints, or broken wires. This simple method can often detect obvious faults without using any test equipment.
2. What is signal tracing, and why is it useful?
Signal tracing involves following the path of an electrical signal through a circuit using tools such as an oscilloscope or signal tracer. This technique helps determine where the signal becomes weak, distorted, or disappears, making it easier to locate the faulty section of the circuit.
3. How are individual electronic components tested?
Electronic components such as resistors, capacitors, diodes, and transistors can be tested using a digital multimeter or specialized test equipment. Measuring their electrical values helps determine whether the components are operating within their specified limits.
4. What is substitution testing, and when should it be used?
Substitution testing involves replacing a suspected faulty component with a known working component. If the circuit operates normally after the replacement, the original component is likely defective.
5. How does circuit simulation assist in troubleshooting?
Circuit simulation software allows users to model and analyze circuit behavior without physically building the circuit. By testing different operating conditions, engineers and technicians can identify potential design issues and verify circuit performance before implementation.
Case Example
A technician is repairing a power supply that fails to produce the required output voltage. The technician first performs a visual inspection and notices a bulging capacitor. After replacing the capacitor, the fault remains. Using a multimeter, the technician tests nearby diodes and discovers that one diode is open-circuit. The faulty diode is replaced, and the power supply resumes normal operation. This example demonstrates how combining different testing techniques can efficiently identify and solve circuit faults.
Conclusion
Circuit testing techniques are essential for diagnosing faults and ensuring the reliable operation of electronic circuits. Methods such as visual inspection, signal tracing, component testing, substitution testing, and circuit simulation each provide valuable information during troubleshooting. By selecting the appropriate testing method and following proper safety procedures, technicians can accurately identify problems, minimize repair time, and maintain the performance and reliability of electronic systems.
Testing electronic circuits is an essential step in identifying faults and ensuring that electronic systems function correctly. The following questions introduce common circuit testing techniques.
1. How can visual inspection help identify circuit problems?
Visual inspection is the first step in troubleshooting. It involves checking the circuit for visible signs of damage, such as loose connections, burnt components, cracked solder joints, or broken wires. This simple method can often detect obvious faults without using any test equipment.
2. What is signal tracing, and why is it useful?
Signal tracing involves following the path of an electrical signal through a circuit using tools such as an oscilloscope or signal tracer. This technique helps determine where the signal becomes weak, distorted, or disappears, making it easier to locate the faulty section of the circuit.
3. How are individual electronic components tested?
Electronic components such as resistors, capacitors, diodes, and transistors can be tested using a digital multimeter or specialized test equipment. Measuring their electrical values helps determine whether the components are operating within their specified limits.
4. What is substitution testing, and when should it be used?
Substitution testing involves replacing a suspected faulty component with a known working component. If the circuit operates normally after the replacement, the original component is likely defective.
5. How does circuit simulation assist in troubleshooting?
Circuit simulation software allows users to model and analyze circuit behavior without physically building the circuit. By testing different operating conditions, engineers and technicians can identify potential design issues and verify circuit performance before implementation.
Case Example
A technician is repairing a power supply that fails to produce the required output voltage. The technician first performs a visual inspection and notices a bulging capacitor. After replacing the capacitor, the fault remains. Using a multimeter, the technician tests nearby diodes and discovers that one diode is open-circuit. The faulty diode is replaced, and the power supply resumes normal operation. This example demonstrates how combining different testing techniques can efficiently identify and solve circuit faults.
Conclusion
Circuit testing techniques are essential for diagnosing faults and ensuring the reliable operation of electronic circuits. Methods such as visual inspection, signal tracing, component testing, substitution testing, and circuit simulation each provide valuable information during troubleshooting. By selecting the appropriate testing method and following proper safety procedures, technicians can accurately identify problems, minimize repair time, and maintain the performance and reliability of electronic systems.
